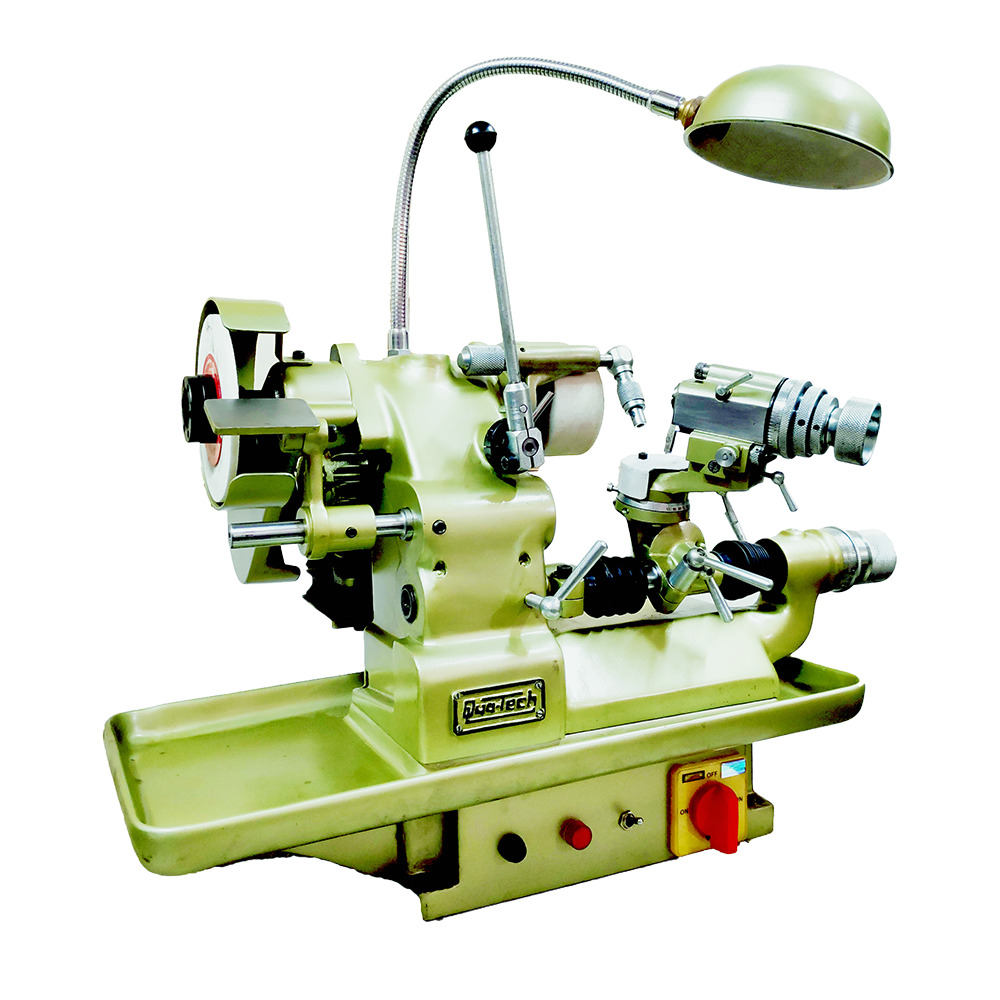

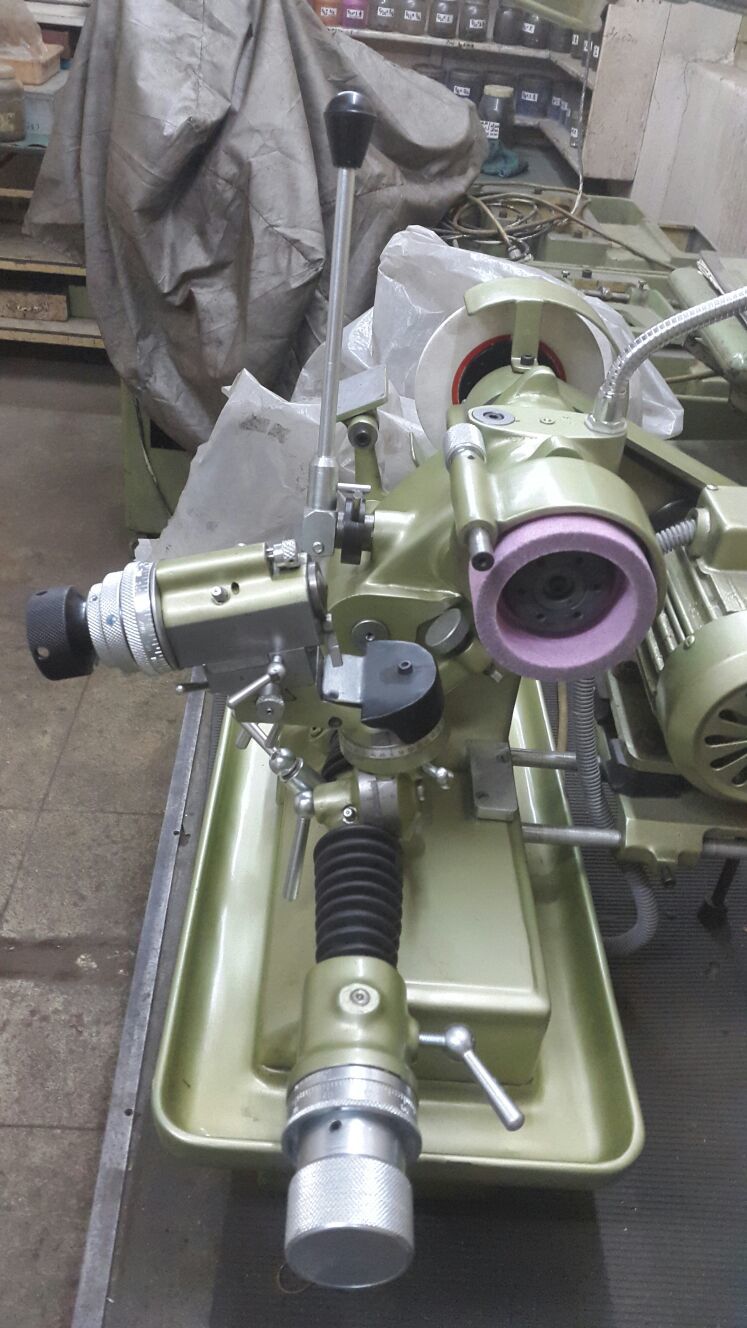

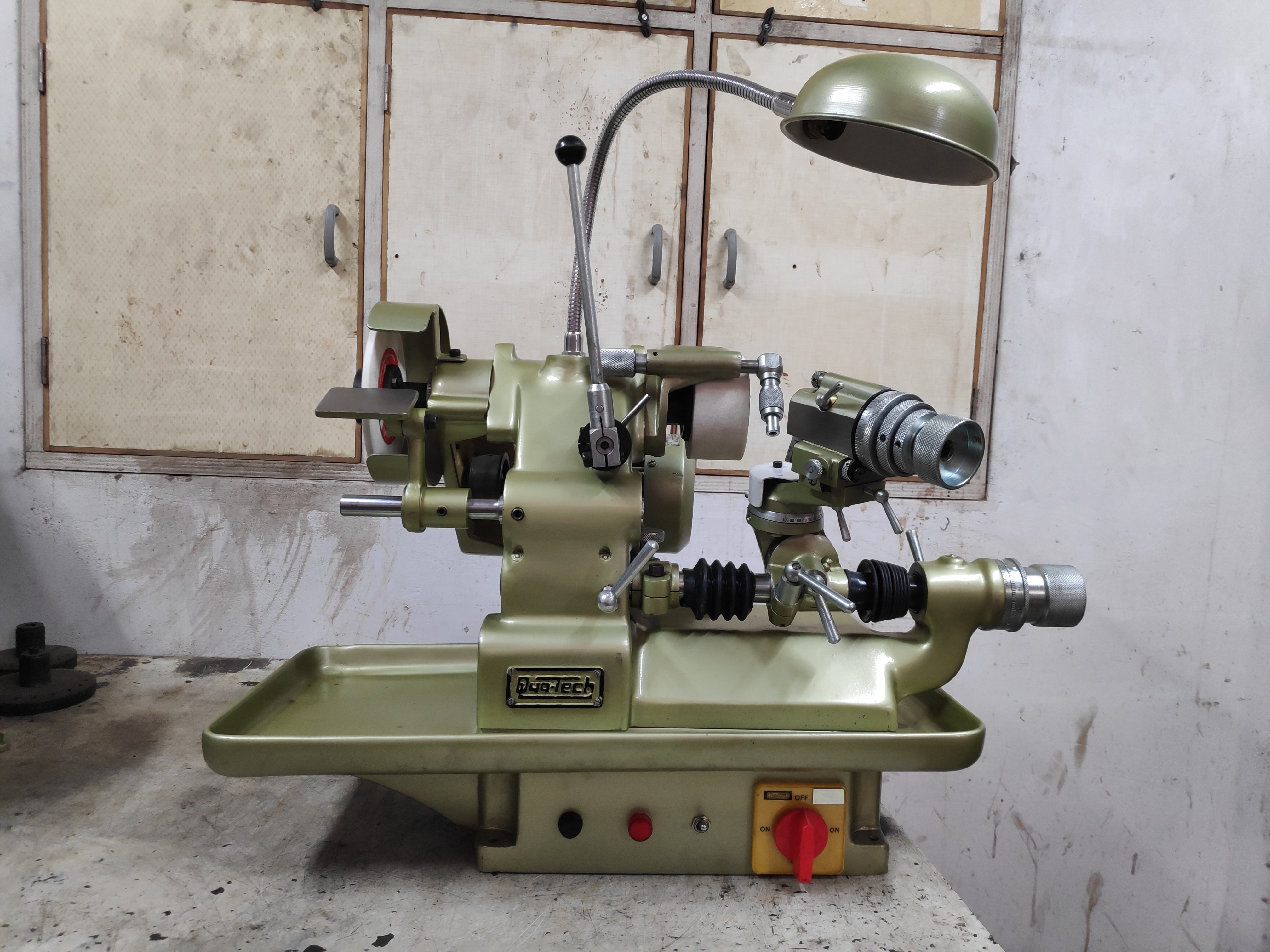

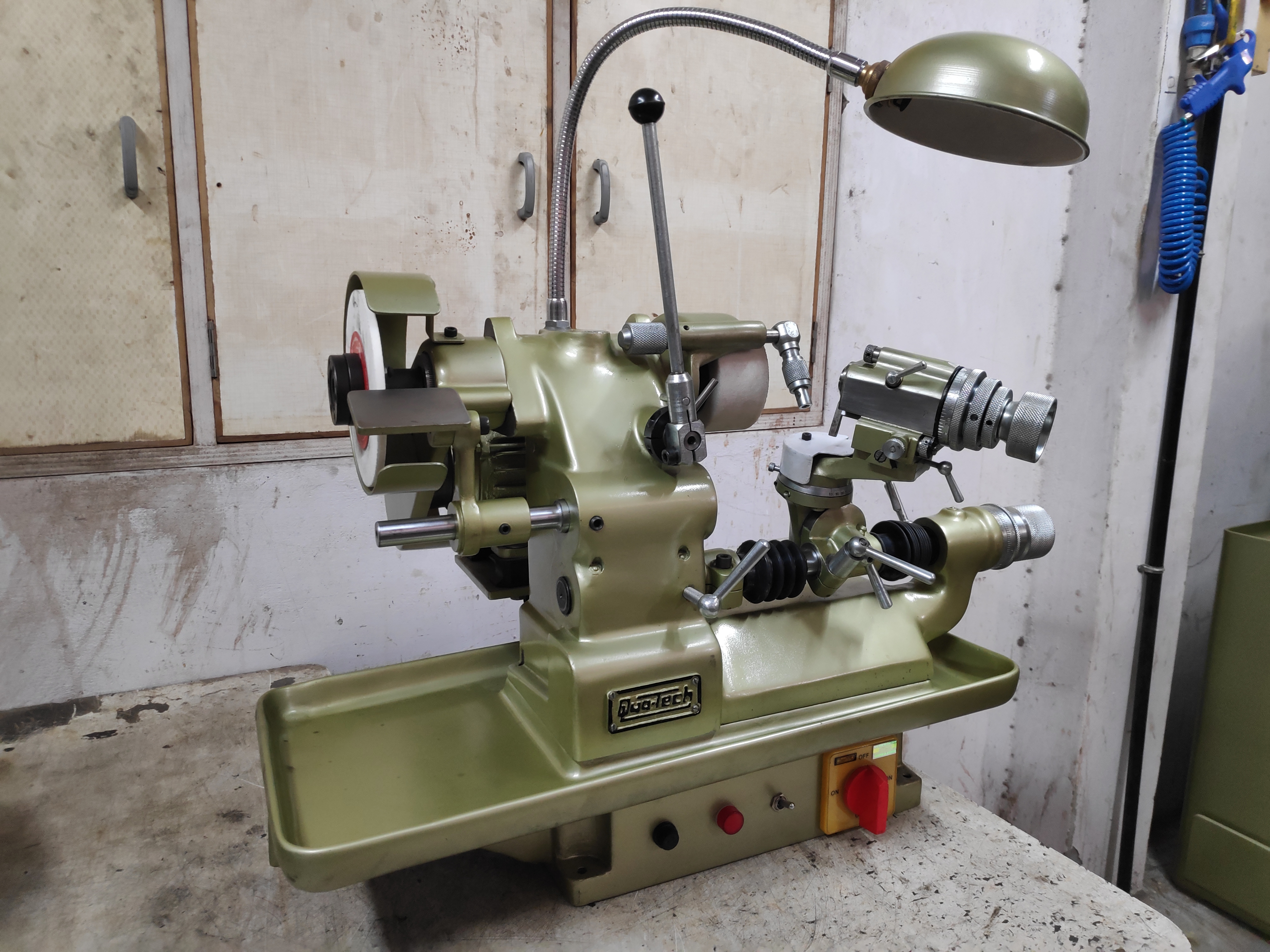

Engraving Tool Grinder

Product Details:

Automatic No
CNC Or Not Normal
Color Green
Computerized No
Control System Manual
Delivery Time 1
Feature High Performance, Low Noise, Lower Energy Consumption, High Efficiency
Floor Space 2 sq foot
Grinding Length 20mm
Grinding Wheel Size 4 inch
Grinding Wheel Speed 5600 RPM
Main Domestic Market All India
Main Export Market(s) Asia, Middle East, Africa
Material Cast Iron
Minimum Order Quantity 1
Model DG-2
Payment Terms Cheque
Power 0.5 Horsepower (HP)
Price 120000.0 INR
Sample Policy Contact us for information regarding our sample policy
Spindle Speed 2800 RPM
Supply Ability 3 Per Month
Type Cylindrical Grinding Machine, Surface Grinding Machine, Edge Milling Machine
Unit of Measure Piece/Pieces, Piece/Pieces, Piece/Pieces
Unit of Price Piece/Pieces
Voltage 440 Volt (v)
Weight (kg) 100 Kilograms (kg)

5600 rpm

Carbide engraving tool grinding 3 part and 4 part

12 index possible

Max tool dia 10mm

CBN Wheel for grinding Carbide Tool

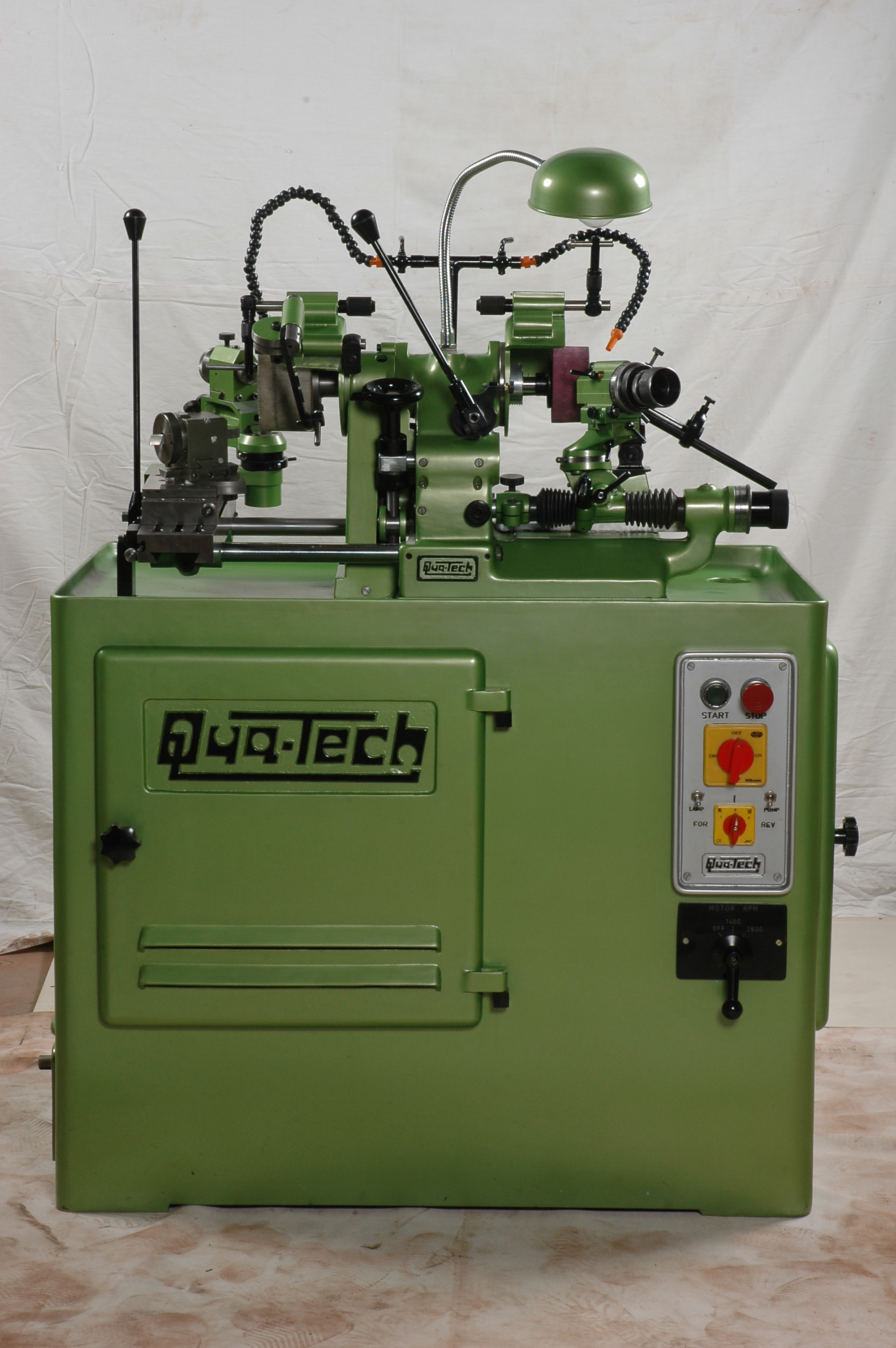

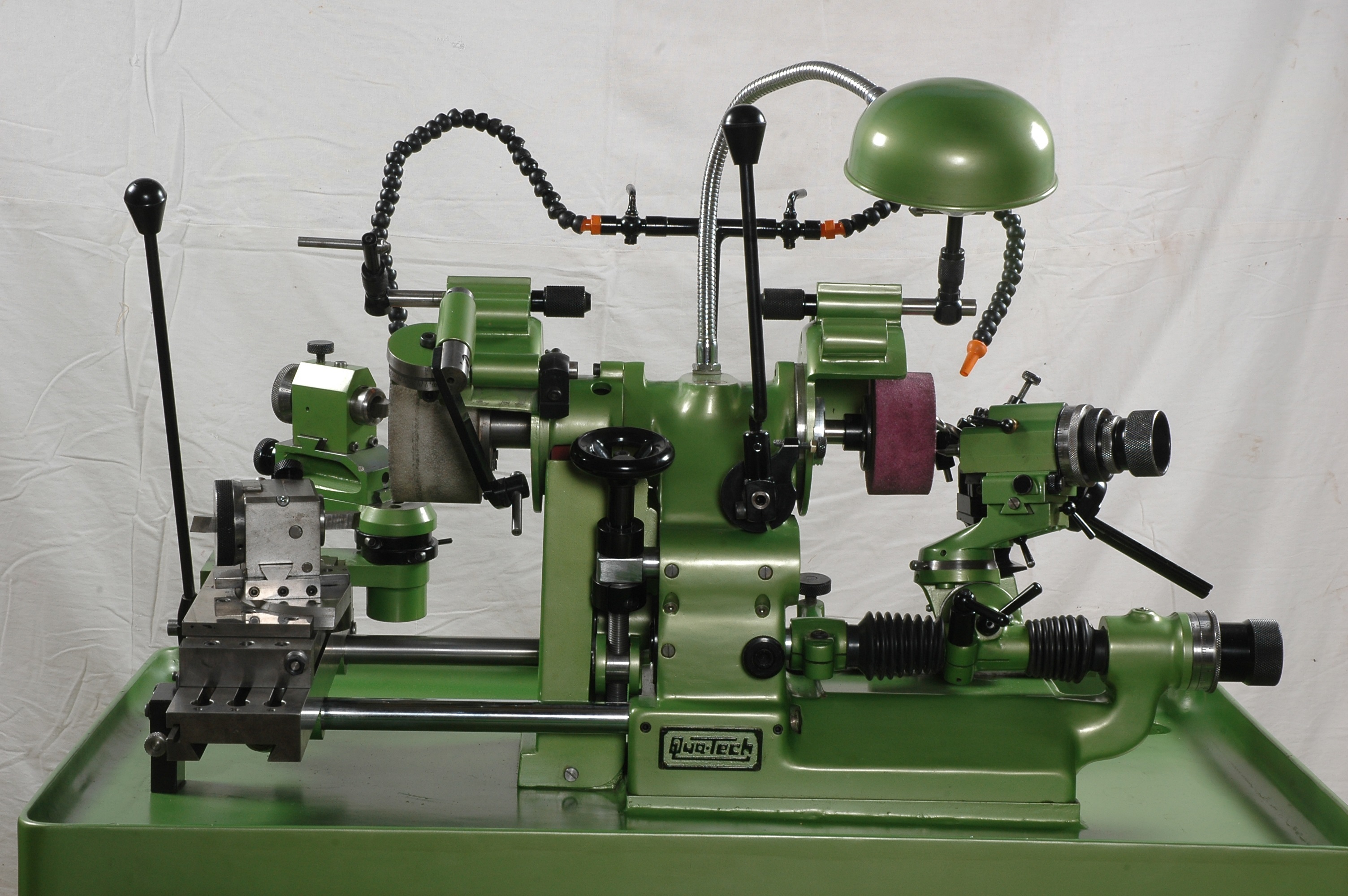

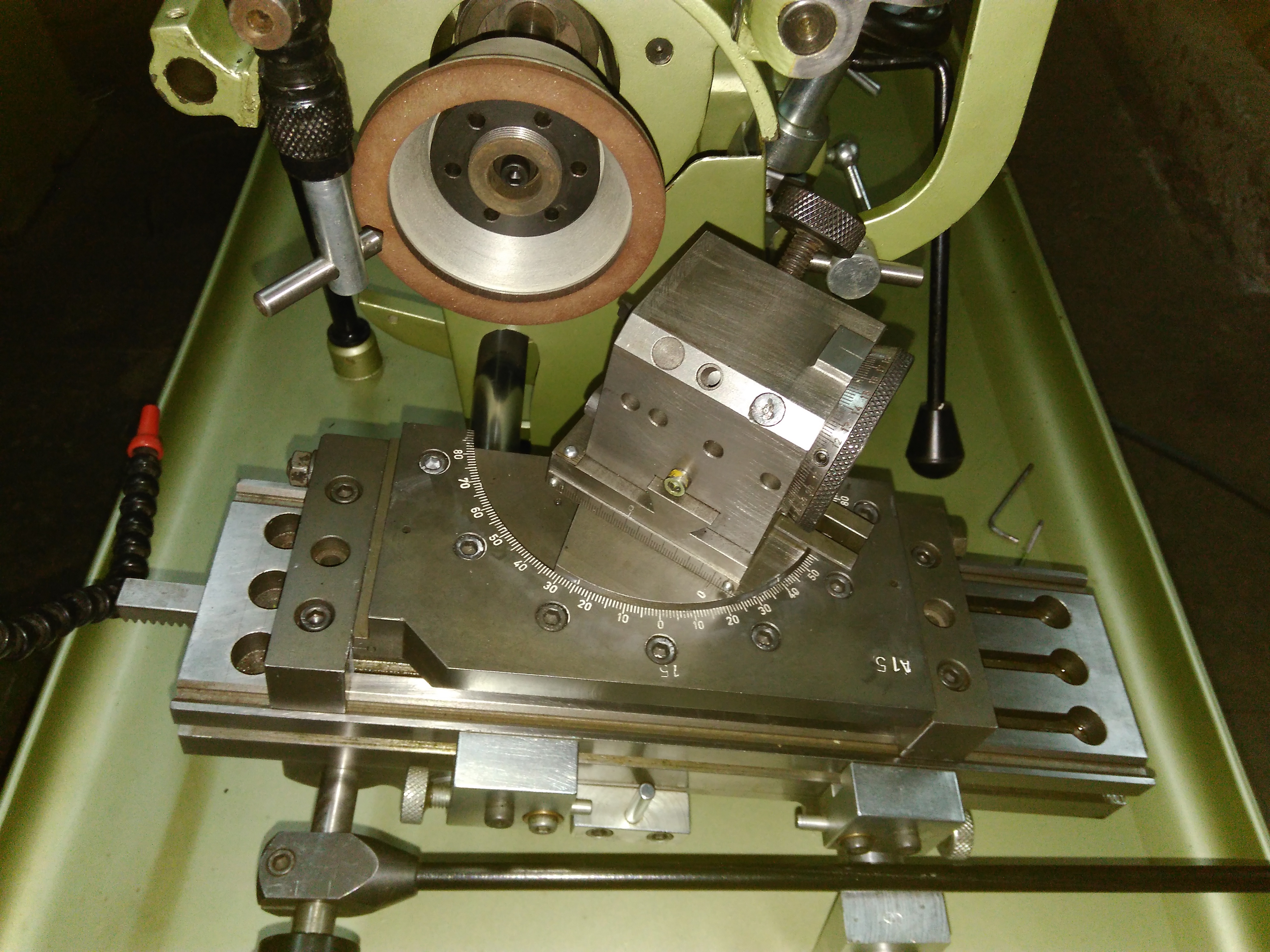

Universal Tool Cutter Grinder Machine

Product Details:

Automatic No
CNC Or Not Normal
Color Green
Computerized No
Control System Manual
Delivery Time 1 Months
Dimension (L*W*H) 1000*600*1250 Inch (in)
Floor Space 3.5 sq ft
Grinding Wheel Size 4 inch
Grinding Wheel Speed 3000 - 5000 RPM
Magnetic Chuck Size no
Main Domestic Market All India
Main Export Market(s) Asia
Material Cast Iron
Minimum Order Quantity 1
Packaging Details Wooden Box with Steel Frame
Payment Terms Cheque
Power 1 HP Horsepower (HP)
Price 180000 INR
Product Type Machine
Sample Policy Contact us for information regarding our sample policy
Spindle Speed 3000 - 5000 RPM
Supply Ability 1 Per Month
Type Surface Grinding Machine
Unit of Measure , , Piece/Pieces
Unit of Price Piece/Pieces
Voltage 440 Volt (v)
Warranty 1 Year
Weight (kg) 250 Kilograms (kg)

Universal Tool & Cutter Grinder Machine we offer is generally utilized in the various industries for cutting or grinding purposes. It is produced by using high quality required smaterials with the help of innovative technology. This item is appreciated in the market because of its excellent performance, superb quality and high durability. All the offered items are tested on the various quality parameters before final dispatch. We offer this Tool & Cutter Grinder Machine to our clients in the most sensible market evaluating.

Product Details

Slotting Cutter Grinder Machine

Product Details:

Automatic No
CNC Or Not Other, Not CNC
Capacity Single Slot Cutter grinding
Color Green
Computerized No
Control System Manual
Dimension (L*W*H) Approx. 900 mm x 700 mm x 1200 mm
Feature Other, Robust construction, Precision grinding, Easy operation
Floor Space 1000 mm x 800 mm
Fuel Tank Capacity 2 Litres (Coolant Tank)
General Use Slotting cutter sharpening and grinding
Grinding Length 250 mm
Grinding Wheel Size 100 mm x 50 mm x 20 mm
Grinding Wheel Speed 2800 RPM
Magnetic Chuck Size 150 mm x 250 mm
Material Other, Cast Iron Body
Minimum Order Quantity 1
Model Standard
Power 0.75 HP
Price 325000 INR
Product Type Slotting Cutter Grinder Machine
Rotation Uni-directional
Spindle Speed 2800 RPM
Table Size 150 mm x 300 mm
Table Slide Way Other, V & Flat guide way
Type Other, Tool & Cutter Grinder
Unit of Measure Piece/Pieces
Unit of Price Piece/Pieces
Voltage 220-240 V AC
Weight (kg) Approx. 250 kg

Cultivated by a group of exceedingly experienced experts, we can advance an immense arrangement of Slotting Cutter Grinder Machine that is utilized for cutting or sharpening the tools. This item is made by using great quality required materials with the help of advanced technology under the supervision of experts. What's more, the offered range of Slotting Cutter Grinder Machine can likewise be benefited by customers from us at stash cordial rates within the promised time frame.

Product Details

Coolant Pump Available

Standard Division 2 - 120 index

Power 0.37 KW. 3 ph. (1 ph on request)

Model SCG

Max. Dia. of Grinding Wheel 125 mm

Max. (Job) Cutter Dia. 125 mm

Index Automatic

Grinding Wheel RPM 5000 RPM

Dimension & Weight 750x750x1400 mm & 250 Kg

Precision Grinding for Slotting Cutters

Engineered to deliver accurate sharpening and grinding, this machine is tailored specifically for slotting cutters up to 120 mm diameter. The carborundum wheel and magnetic chuck assure consistent, secure holding and effective material removal, making it suitable for demanding tool room applications.

User-Friendly Design and Operation

With a simple manual control system and easy-lubrication process, operators of varying skill levels can quickly adapt to this machine. Its 150 mm x 300 mm table size and 250 mm grinding length provide ample workspace for efficient single slot cutter operations.

Robust Build and Industrial Reliability

Constructed from solid cast iron and fitted with a reliable enclosed induction motor, the grinder stands up to continuous industrial use. The V & Flat guideways ensure stability and enduring accuracy, while the coolant system minimizes heat buildup during operation.

FAQ's of Slotting Cutter Grinder Machine:

Q: How does the Slotting Cutter Grinder Machine benefit industrial tool rooms and workshops?

A: This machine offers high precision grinding and sharpening for slotting cutters, ensuring tools are accurately maintained for optimal performance. Its robust cast iron body and simple manual controls make it suitable for both intensive workshop use and daily tool room tasks.

Q: What is the process for sharpening a slotting cutter with this grinder?

A: Begin by securing the cutter on the 150 x 250 mm magnetic chuck. Position the table and set the workhead swivel as needed. Initiate the carborundum grinding wheel at 2800 RPM, manually lubricate, and guide the cutter for precise edge restoration using the table's V & Flat slide way.

Q: When should the coolant system be used during operation?

A: The coolant system, equipped with a 2-litre tank and pump, should be used during all grinding cycles. It helps to prevent thermal damage to the cutter and maintains accuracy by dissipating heat generated during grinding.

Q: Where can this machine be installed for effective usage?

A: Ideal for industrial tool rooms and workshops, it requires a floor space of 1000 mm x 800 mm. Ensure the installation site has a stable, level base and is accessible to a 220-240 V AC power supply for safe and effective operation.

Q: What maintenance does the Slotting Cutter Grinder Machine require?

A: Regular manual lubrication of guideways and moving parts is essential to preserve smooth motion and accuracy. Periodically clean the coolant system and check the grinding wheel for wear; replace as necessary for precise results.

Q: How is the workpiece held in place during grinding?

A: The machine utilizes a magnetic chuck sized 150 mm x 250 mm, ensuring firm and stable holding of the slotting cutter throughout the grinding process, thereby supporting precision and operator safety.

Q: What are the key features that distinguish this grinder from CNC grinders?

A: Unlike CNC machines, this grinder operates with manual controls and offers hands-on operation, allowing operators full control over each process step. It provides a cost-effective, low-maintenance solution for single slot cutter grinding without the complexity of computerized interfaces.
