Hobbing Machine

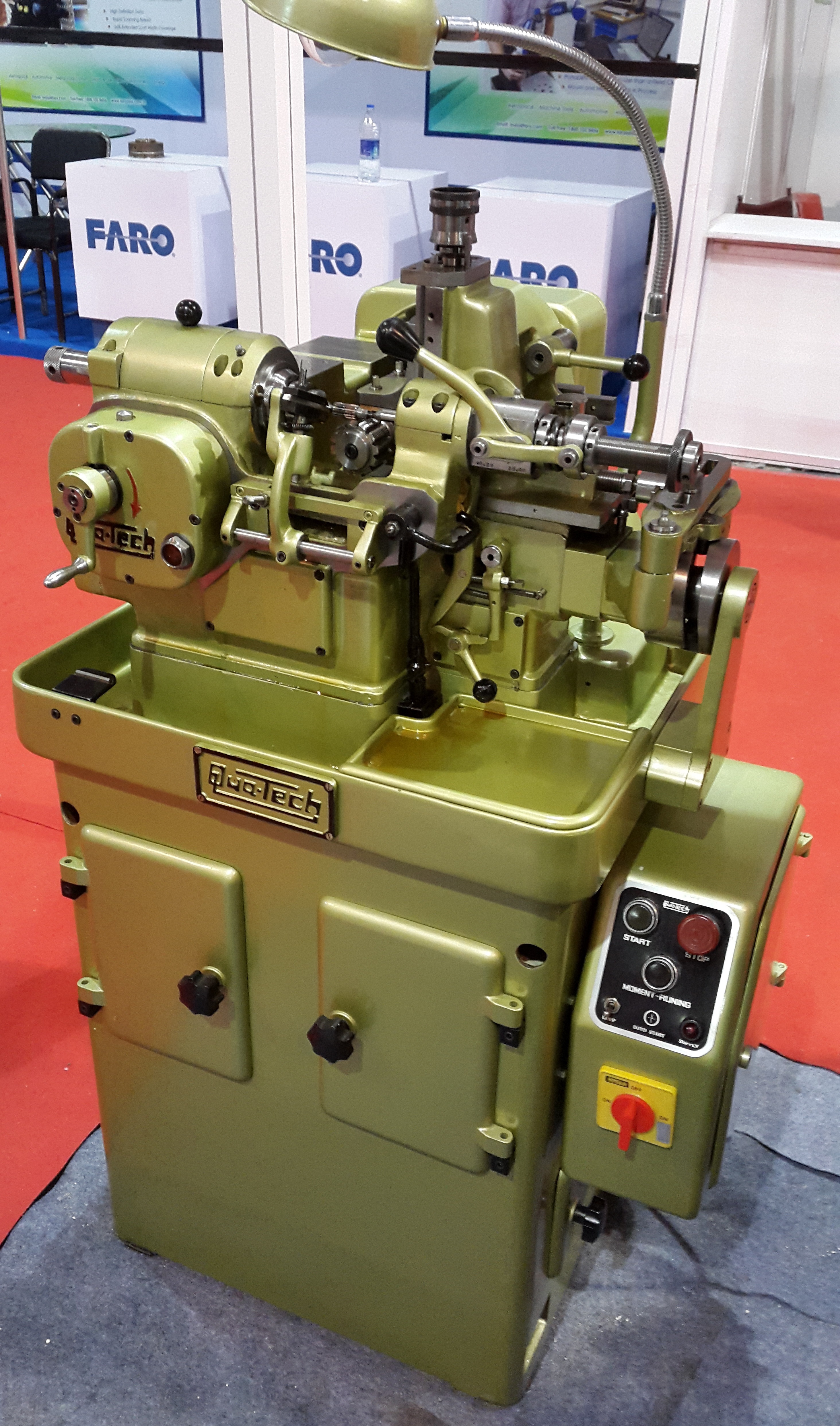

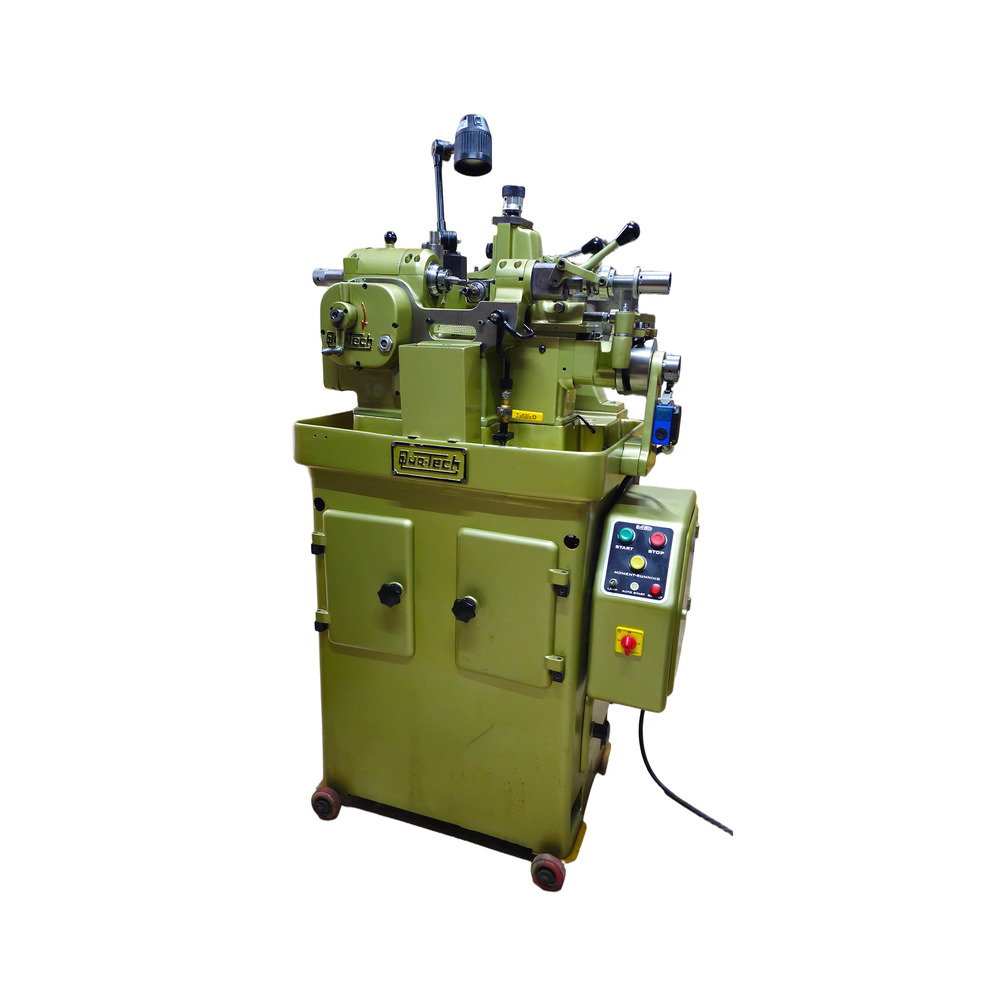

We are an unparalleled name in the market, affianced in offering a qualitative range of Synchronize Spur Gear Hobbing Machine that is made by using quality tested raw materials with the help of innovative technology under the guidance of our skilled technocrats as per the set industry standards. This item is utilized for cutting or hobbing purposes. It is demanded in the market because of its corrosion resistance in nature. Offered Synchronize Spur Gear Hobbing Machine is delivered by us at market leading price rate.

 Product Details

Cutting Length 1200 mm

Work SPINDLE size 13,16,19 & 22 mm as per demand

Shipping Dimension & Weight 2000x800x1400 mm, 550 Kg. Approx.

SHIFTING of Hob Spindle 15 mm Liner Movement

REVOLUTION of Hob spindle. 310 to 1500 RPM, 16 step High speed available on request.

PITCH Capacity Max. 1.25 Module, 20 D.P.

Nos. of TEETH cut by Std. & Extra gear 6 to 102 Teeth all Nos. & 103 to 230 Teeth with some 'odd Nos. lapsed'.

Model SSHL-2

Max. Shaft Dia. 18 mm dia

HELIX ANGLE for Cutter 5 degree max. for spur gear

FEED per Rev. of work 0.063 to 1 mm, 13 step

ELECTRICAL Load 0.8 KW., 3 Phase

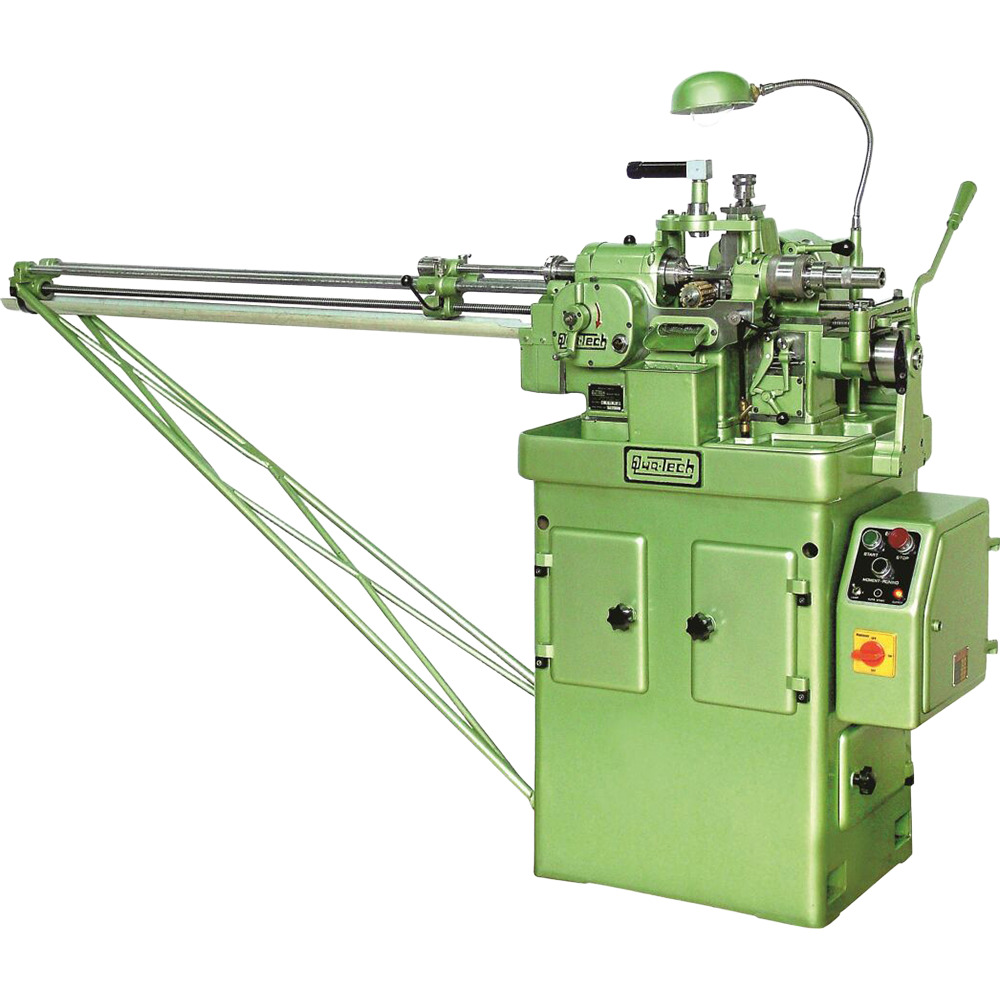

Owing to our expertise, we bring forth an exclusive range of Continuous Spline Hobbing Machine that is fabricated as per the international quality standards utilizing superlative grade raw materials with the help of innovative technology. This item is utilized in the various industries for hobbing purposes. It is appreciated in the market because of its good quality and durability. Offered Continuous Spline Hobbing Machine can be avail from us at a reasonable price rate without any kind of delay.

Product Details

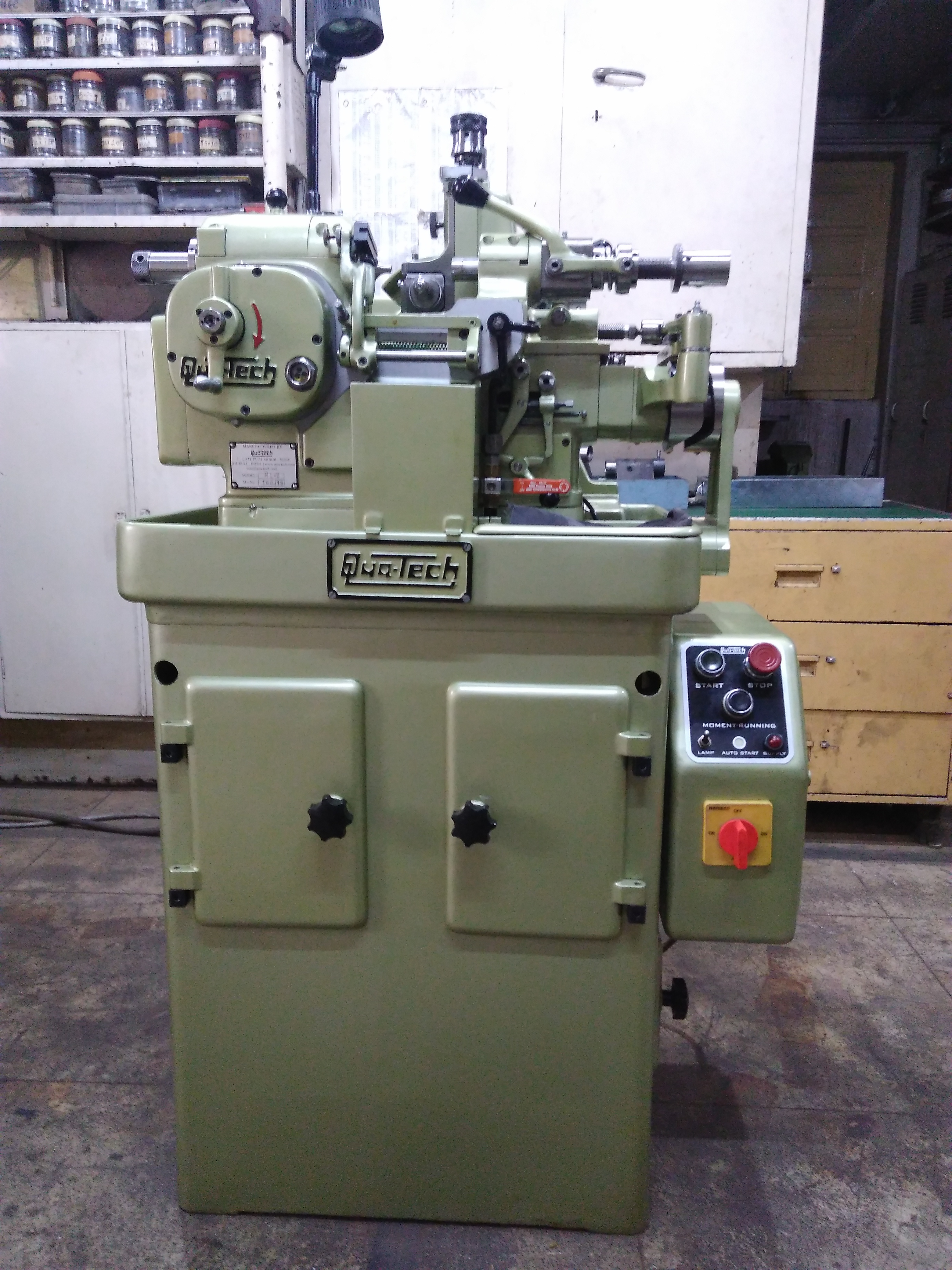

Empowered with rich industry experience, we are engaged in offering Spur Gear Model Hobbing Machine that is made by using matchless quality raw materials with the help of modern technology as per the set industry norms. This item is utilized the milling machine for machining process. It is demanded in the market because of its great quality and durability. The provided Spur Gear Model Hobbing Machine is tested on the various quality parameters before dispatching it from our premises.

Product Details

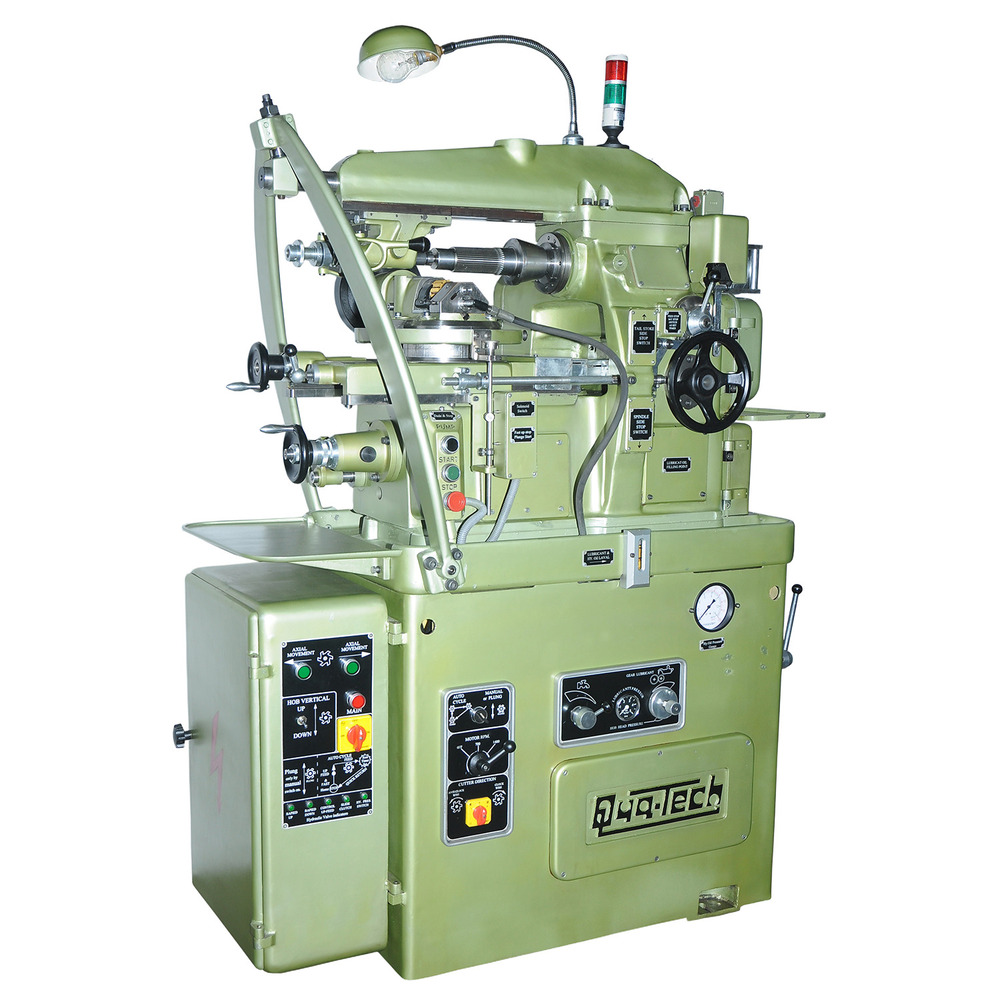

Being a client situated manufacturer and supplier of top-quality Universal Gear Hobbing Machine to our customers. This machine is made by using great quality required materials with the assistance of innovative technology. As a reputed provided in the market we never compromise with the quality of our items. It is appreciated in the market because of its robust structure, hassle free performance and highly durable nature. The provided Universal Gear Hobbing Machine can be avail from us within promised time frame.

Product Details

Lead of Gear to be cut 6 to 400 mm

Work spindle BORE & NOSE 41 mm - Milling Taper ISO 50

Shifting of Hob Spindle 45 mm

Plunge Feed per Turn of Cutter 0.0025 to 0.05 mm

Pitch Capacity 2 Mo. steel, 2.5 Mo. Brass & Cast Iron

No. of Teeth Cut by STD. & EXTRA Spe. Gears Number of Teeth 4 to 400 (most of Nos.)

Model UH-150

Max. WIDTH of Gear Spur 180 mm

Max. Gear Dia. cut by HOB Dia. 150. by 25mm Hob \ 125 by 50 mm Hob

Hob Spindle RPM 200 to 1500 RPM in 24 Step

Hob Spindle Bore Std. for Hob Mandrill 20 Taper

Helix Angle of Gear to be cut 0 to 75 Degree in normal

Hob Mandrill Std. size available for Hob Bore 8, 10 13 & 22 mm Dia.

FEED per Rev. of work 0.025 to 2 mm

Electrical Load 3 HP , 3 Phase

Distance between HEAD STOCK & TAIL STOCK Centre By Standard Tail Stock 400 mm

Dimension & Weight 1200 x 600 1500 mm, 1000 Kg

Dia. of Hob cutter to be use 25 to 55 mm Dia. & 55 mm Length

Cutter Helix ANGLE to be set 0 to 80' Degree

Cutter Head Angle set by Vernier Scale 5 Minute

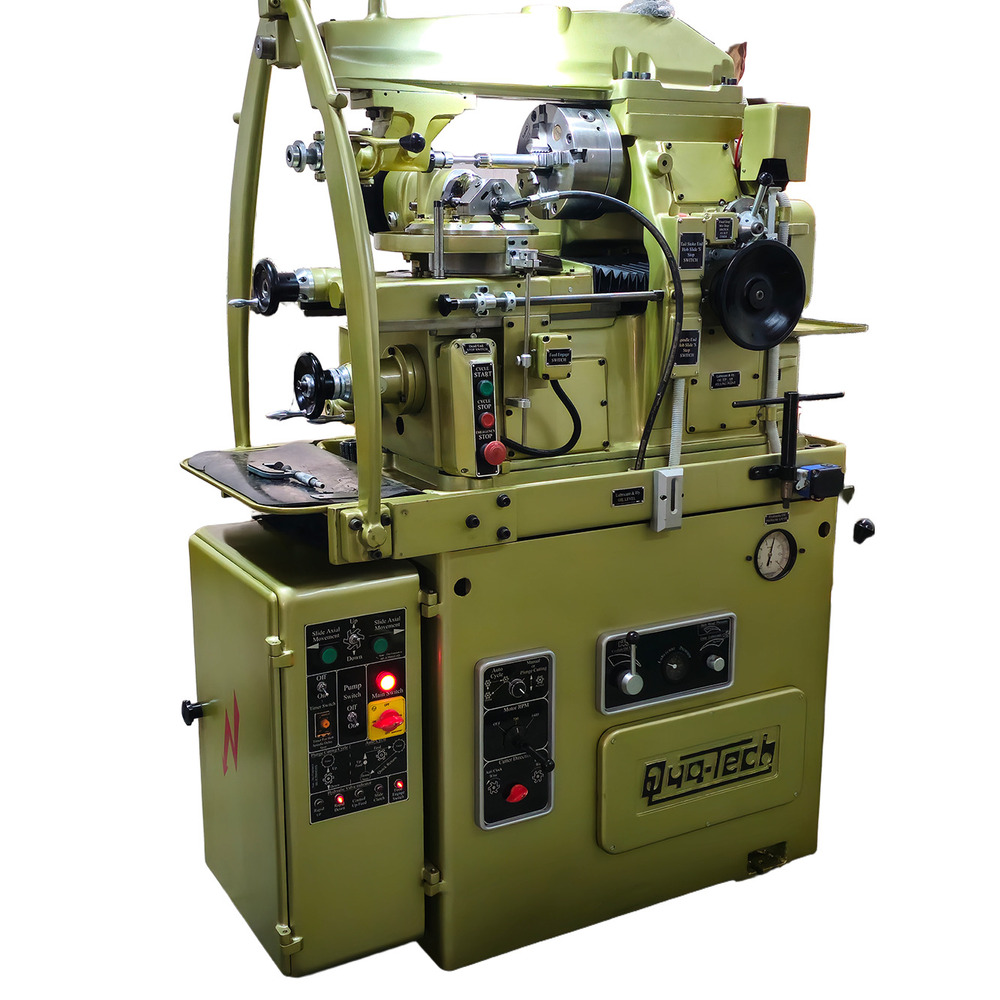

Utilizing on the ability of our skillful faculty, we are engaged with introducing a top notch quality Spline Hobbing Machine to our significant customers. This item is utilized for hobbing applications. It is made by using high quality required materials with the help of advanced technology. Our offered Spline Hobbing Machine has attributes like excellent functioning, great quality and durability. We supply the same at a cost-effective price within the stipulated time period.

Product Details
