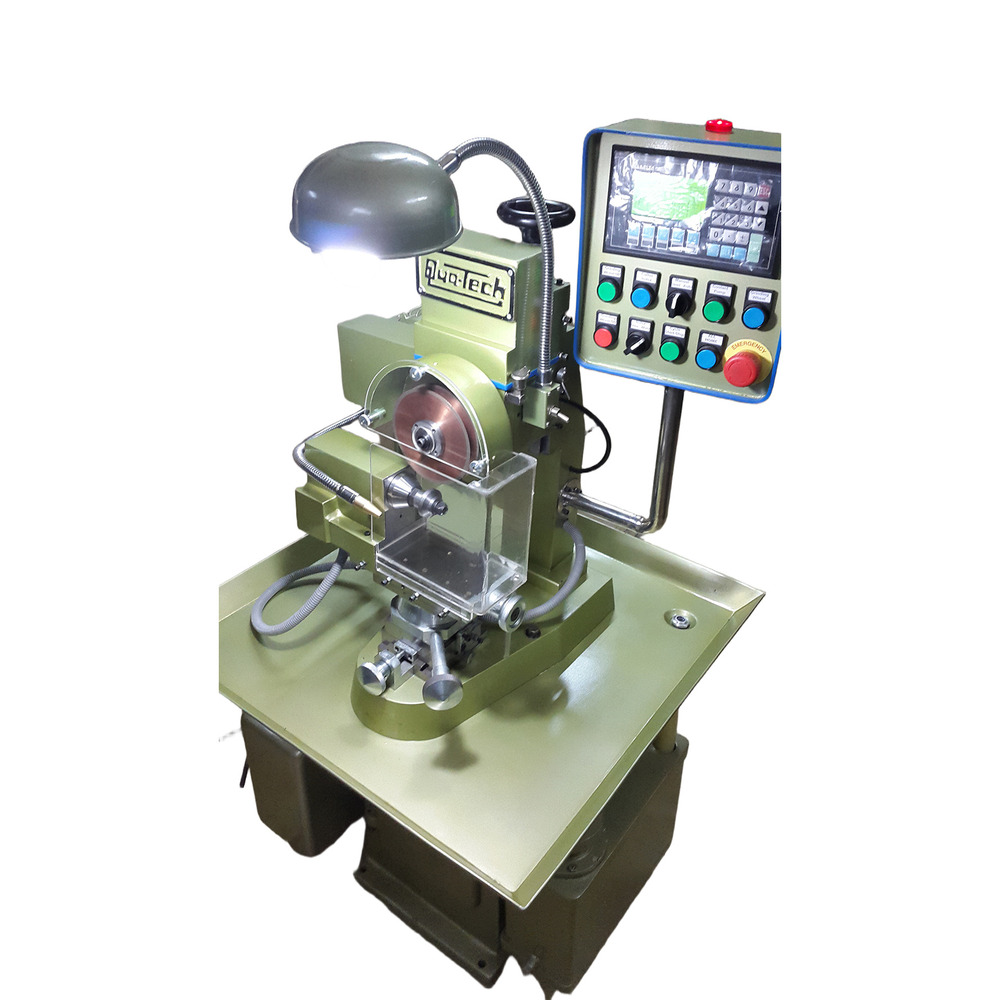

Slotting Cutter Grinder Machine

Name: Slotting Cutter Grinder Machine
Brand: QUA-TECH INDUSTRIES
Price: 325000 INR
Availability: InStock

Price 325000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Slotting Cutter Grinder Machine Specification

Model
Standard

Rotation
Uni-directional

Product Type
Slotting Cutter Grinder Machine

General Use
Slotting cutter sharpening and grinding

Material
Cast Iron Body

Type
Tool & Cutter Grinder

Capacity
Single Slot Cutter grinding

Weight (kg)
Approx. 250 kg

Computerized
No

Automatic
No

CNC Or Not
Not CNC

Control System
Manual

Table Size
150 mm x 300 mm

Table Slide Way
V & Flat guide way

Magnetic Chuck Size
150 mm x 250 mm

Grinding Wheel Size
100 mm x 50 mm x 20 mm

Grinding Wheel Speed
2800 RPM

Grinding Length
250 mm

Floor Space
1000 mm x 800 mm

Fuel Tank Capacity
2 Litres (Coolant Tank)

Spindle Speed
2800 RPM

Power
0.75 HP

Voltage
220-240 V AC

Dimension (L*W*H)
Approx. 900 mm x 700 mm x 1200 mm

Feature
Robust construction, Precision grinding, Easy operation

Color
Green

About Slotting Cutter Grinder Machine

Cultivated by a group of exceedingly experienced experts, we can advance an immense arrangement of Slotting Cutter Grinder Machine that is utilized for cutting or sharpening the tools. This item is made by using great quality required materials with the help of advanced technology under the supervision of experts. What's more, the offered range of Slotting Cutter Grinder Machine can likewise be benefited by customers from us at stash cordial rates within the promised time frame.

Product Details

Coolant Pump Available

Standard Division 2 - 120 index

Power 0.37 KW. 3 ph. (1 ph on request)

Model SCG

Max. Dia. of Grinding Wheel 125 mm

Max. (Job) Cutter Dia. 125 mm

Index Automatic

Grinding Wheel RPM 5000 RPM

Dimension & Weight 750x750x1400 mm & 250 Kg

Precision Grinding for Slotting Cutters

Engineered to deliver accurate sharpening and grinding, this machine is tailored specifically for slotting cutters up to 120 mm diameter. The carborundum wheel and magnetic chuck assure consistent, secure holding and effective material removal, making it suitable for demanding tool room applications.

User-Friendly Design and Operation

With a simple manual control system and easy-lubrication process, operators of varying skill levels can quickly adapt to this machine. Its 150 mm x 300 mm table size and 250 mm grinding length provide ample workspace for efficient single slot cutter operations.

Robust Build and Industrial Reliability

Constructed from solid cast iron and fitted with a reliable enclosed induction motor, the grinder stands up to continuous industrial use. The V & Flat guideways ensure stability and enduring accuracy, while the coolant system minimizes heat buildup during operation.

FAQ's of Slotting Cutter Grinder Machine:

Q: How does the Slotting Cutter Grinder Machine benefit industrial tool rooms and workshops?

A: This machine offers high precision grinding and sharpening for slotting cutters, ensuring tools are accurately maintained for optimal performance. Its robust cast iron body and simple manual controls make it suitable for both intensive workshop use and daily tool room tasks.

Q: What is the process for sharpening a slotting cutter with this grinder?

A: Begin by securing the cutter on the 150 x 250 mm magnetic chuck. Position the table and set the workhead swivel as needed. Initiate the carborundum grinding wheel at 2800 RPM, manually lubricate, and guide the cutter for precise edge restoration using the table's V & Flat slide way.

Q: When should the coolant system be used during operation?

A: The coolant system, equipped with a 2-litre tank and pump, should be used during all grinding cycles. It helps to prevent thermal damage to the cutter and maintains accuracy by dissipating heat generated during grinding.

Q: Where can this machine be installed for effective usage?

A: Ideal for industrial tool rooms and workshops, it requires a floor space of 1000 mm x 800 mm. Ensure the installation site has a stable, level base and is accessible to a 220-240 V AC power supply for safe and effective operation.

Q: What maintenance does the Slotting Cutter Grinder Machine require?

A: Regular manual lubrication of guideways and moving parts is essential to preserve smooth motion and accuracy. Periodically clean the coolant system and check the grinding wheel for wear; replace as necessary for precise results.

Q: How is the workpiece held in place during grinding?

A: The machine utilizes a magnetic chuck sized 150 mm x 250 mm, ensuring firm and stable holding of the slotting cutter throughout the grinding process, thereby supporting precision and operator safety.

Q: What are the key features that distinguish this grinder from CNC grinders?

A: Unlike CNC machines, this grinder operates with manual controls and offers hands-on operation, allowing operators full control over each process step. It provides a cost-effective, low-maintenance solution for single slot cutter grinding without the complexity of computerized interfaces.
